PCB ulagichlari
"Radio chastotasi bosma bosma aloqalari ulagichlari" ning qisqarishi bo'lgan RF PCB ulagichlari {{1} tugmachalari (PCBS) . {PCBS) . {PCBS) . {PCBS). Stsenariy .}
Ta'rif
Mahsulotni kiritish
"Radio chastotasi bosma bosma aloqalari ulagichlari" ning qisqarishi bo'lgan RF PCB ulagichlari {{1} tugmachalari (PCBS) . {PCBS) . {PCBS) . {PCBS). Stsenariy .}
RF PCB ulamaydiganlari odatdagidek, aniq signal yo'qotish va ta'sirchan signallarni buzish va buzilishlar bilan bog'liq bo'lgan xarakterli impeditsiyalar bilan ajralib turadi. Chastota signallari . Ba'zi modellar chastotalarda 110 ga yaqin yoki undan yuqori darajada saqlanib qoladi, chunki signal ulagichlar . {}}
Mahsulot tanasi uslubi
Flempirf-ning PCB ulagichlari uchun turli xil port turlariga ega.
Masalan, sirtli PCB ulagichlari cheklangan . . . . . differentsial kompakt-diskka integratsiyalash uchun turli xil o'rnatilgan uslublar bilan shug'ullanadi.
Mahsulotni qo'llash
RF PCB ulamaydiganlar zamonaviy (magnit rezionasi) mashinalarida, masalan, MRI (Magnitus Conem Connections) avtomobilsozlik sanoatidagi yuqori chastotali signallarning yuqori chastotali signallarini elektr energiyasining yuqori chastotali signallari, RF PCB o'rtasida yuqori chastotali signallarni uzatish uchun qo'llaniladi Ulagichlar Adaptiv kruiz nazorati kabi funktsiyalar uchun avtomobillar radar tizimlari kabi qo'llaniladi .
Xaridlar haqida tez-tez beriladigan savollar
Mahsulotni spetsifikatsiya qilish ma'lumotlari
|
Konfiguratsiya |
|
|
Ulagich turi |
Sma / 2.92mm / 2.4MM / 1,85mm / GPO |
|
Ulagichning urf-odatlari |
50 ohm |
|
Ulagich qutb |
Standart |
|
Ulagichni o'rnatish usuli |
To'g'ri / 2 ta teshik / 4 ta teshik |
|
Ilovalar usuli |
Aloqa qilmoq |
|
Materiallar haqida ma'lumot |
|
|
Markaz aloqasi |
Kubalik oltin qoplangan |
|
Tashqi aloqa |
Guruch oltin qoplamasi |
|
Tana |
Bass Olitin plitalari va zanglamaydigan po'latdan yasalgan |
|
Dielektrik |
Pei / ptfe |
|
Atrof-muhit ma'lumotlari |
|
|
Harorat oralig'i |
-55 +165 ilmiy darajasiga |
|
2011/65 / EI (Rohs) |
Muvofiq |
Mahsulot turi

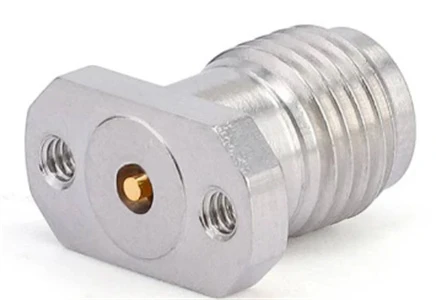

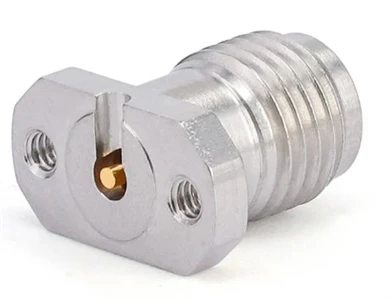

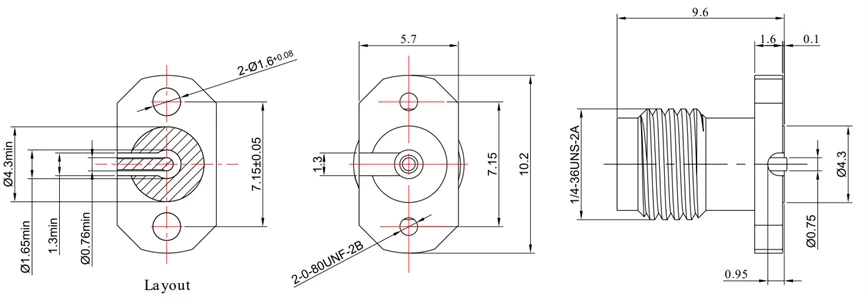

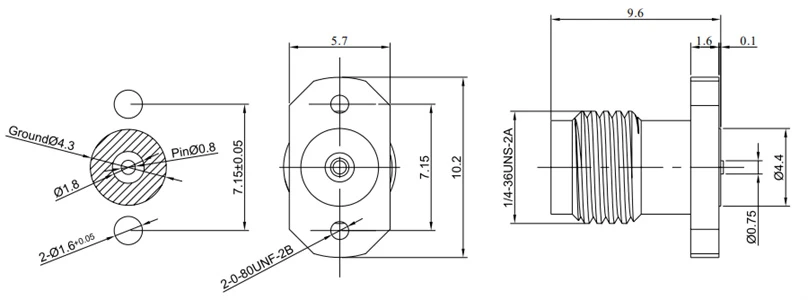

| SMA PCB ulagichlari | |||||
 |
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|

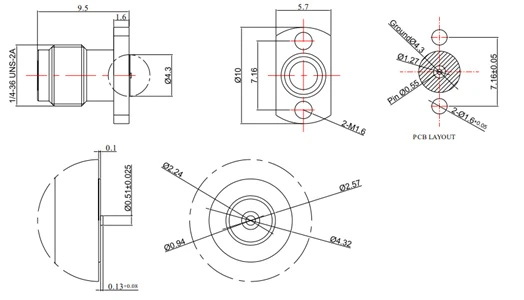

Fr 2- Sma-KFD 216-4 |
DC - 26.5 ghz |
1.20 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
Sirt signali |
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|

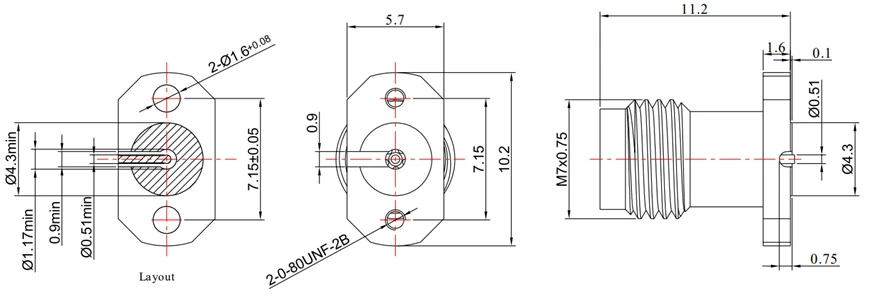

Fr 2- Sma-KFD216 |
DC - 26.5 ghz |
1.20 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
O'rta va pastki signallar |
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- Sma-XD 104-1 |
DC - 12.4 ghz |
1.20 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|

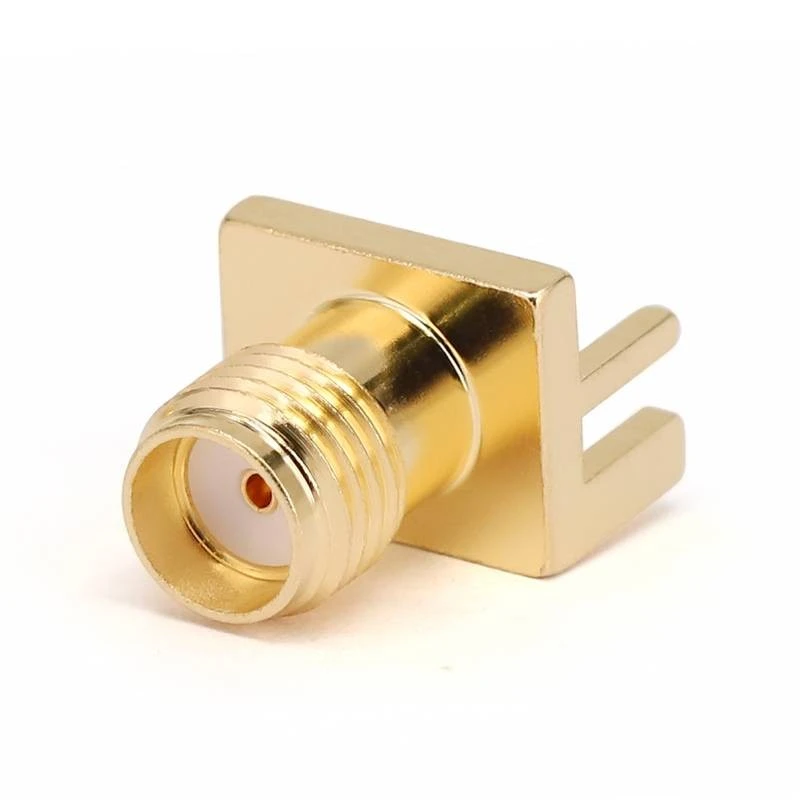

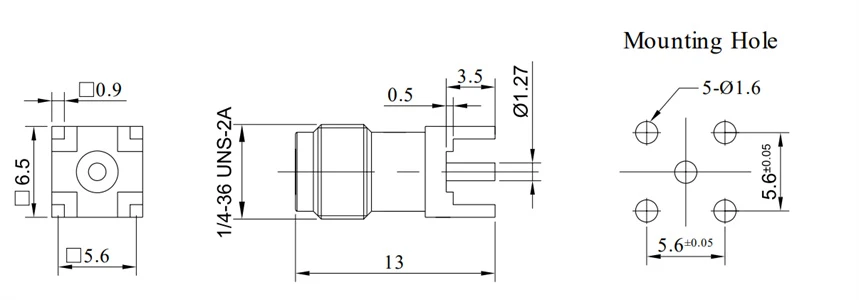

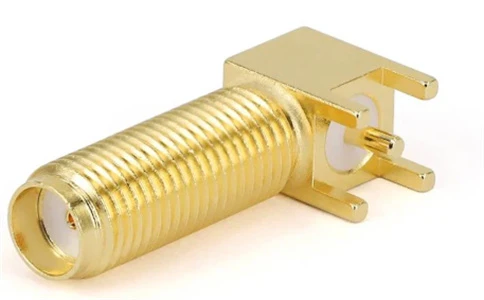

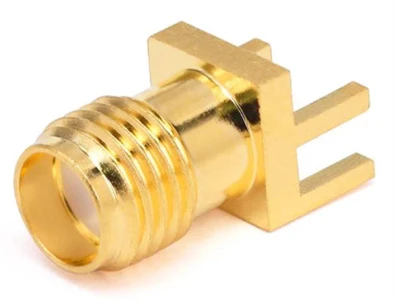

SMA PCB ulagichlari |
|||||
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- Sma-XD100 |
DC - 18 ghz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-} kVthd |
DC - 6 ghz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|

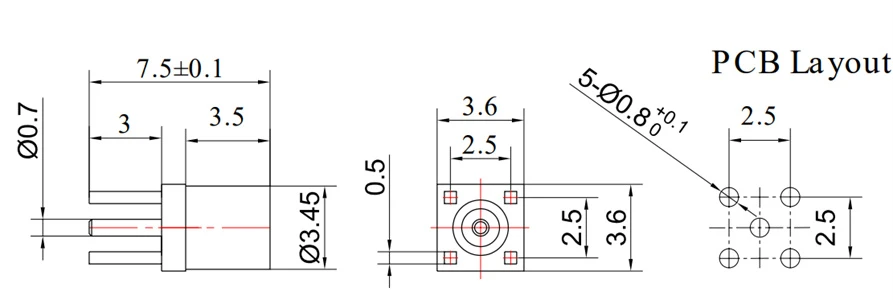

SMA PCB ulagichlari |
|||||
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-}} sma-kVhd10 |
DC - 6 ghz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- Sma-kVtd17 |
DC - 6 ghz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-}} sma-kVhd11 |
DC - 6 ghz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
SMA PCB ulagichlari |
|||||
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- Sma-XD2011 |
DC - 6 ghz |
1.25 |
Gorizontal Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- Sma-kVtd17 |
DC - 6 ghz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- Sma-KyFd0101 |
DC - 6 ghz |
1.25 |
Vintli mahkamlash |
Guruch oltin qoplamasi |
Nod |
|
SMA PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
FR 2- Sma-Kyhd321 |
DC - 26.5 ghz |
1.30 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- Sma-XD |
DC - 6 ghz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|

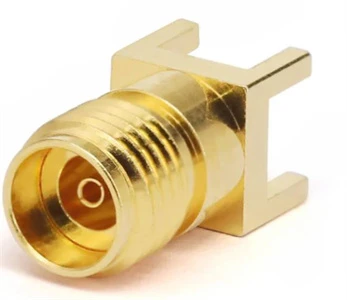

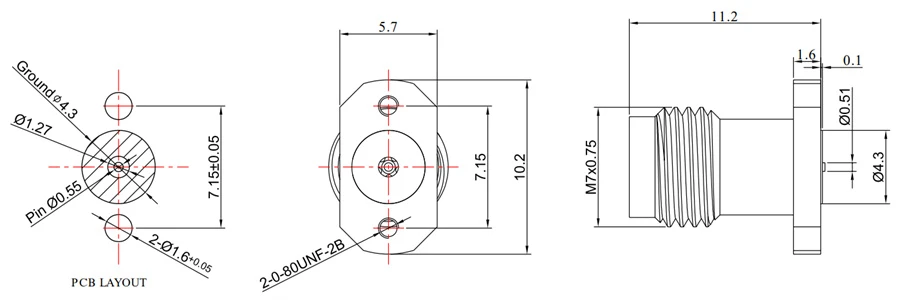

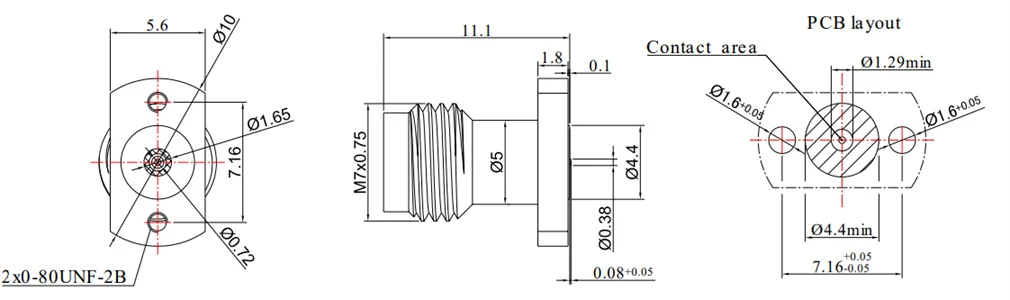

2.92mm PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-2.92- cfd216 |
DC - 40 ghz |
1.25 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
Sirt signali |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-2.92- 216-1 |
DC - 40 ghz |
1.25 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
O'rta va pastki signallar |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-2.92- XD100 |
DC - 40 ghz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
3.5 mm PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-3.5- cfd216 |
DC - 26.5 ghz |
1.25 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
Sirt signali |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-3.5- 216-1 |
DC - 26.5 ghz |
1.25 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
O'rta va pastki signallar |
|
2.4MM PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-2.4- cfd216 |
DC - 50 hz |
1.25 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
Sirt signali |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-2.4- 216-1 |
DC - 50 hz |
1.25 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
O'rta va pastki signallar |
|
1.85mm PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-1.85- cfd216 |
DC - 67 hz |
1.30 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
Sirt signali |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2-2.4- 216-1 |
DC - 50 hz |
1.30 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
O'rta va pastki signallar |
|
GPO (SMP) PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- GPO-JFD216 |
DC - 40 ghz |
1.50 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
Sirt signali |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- GPO-JFD 216-1 |
DC - 40 ghz |
1.50 |
Vintli mahkamlash |
Zanglamaydigan po'lat |
O'rta va pastki signallar |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- GPO-XD |
DC - 18 hz |
1.25 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
GPO (SMP) PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPO-JHD15 |
DC - 40 ghz |
1.50 |
Kartrij lehim |
Guruch oltin qoplamasi |
Cheklangan hirm |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPO-JFD 246- |
DC - 26.5 ghz |
1.45 |
Vintli mahkamlash |
Guruch oltin qoplamasi |
To'liq hirsga |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPO-JHD 23- f |
DC - 26.5 ghz |
1.45 |
Kartrij & sirt xodimi |
Guruch oltin qoplamasi |
To'liq hirsga |
|
GPO (SMP) PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPO-JHD 23- l l |
DC - 26.5 ghz |
1.45 |
Kartrij & sirt xodimi |
Guruch oltin qoplamasi |
Cheklangan hirm |
|
|
|
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPO-JHD 23- |
DC - 26.5 ghz |
1.45 |
Kartrij & sirt xodimi |
Guruch oltin qoplamasi |
Silliq |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPO-JHD 2- |
DC - 26.5 ghz |
1.45 |
Kartrij lehim |
Guruch oltin qoplamasi |
Silliq |
|
GPPO (mini-SMP) PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPPO-JHD 1- |
DC - 65 ghz |
1.57@40G |
Sirt lehim |
Guruch oltin qoplamasi |
Silliq |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPPO-JHD1 |
DC - 65 ghz |
1.57@40G |
Sirt lehim |
Guruch oltin qoplamasi |
To'liq hirsga |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPPO-JHD20R |
DC - 40 ghz |
1.25 |
Gorizontal sirt lehim |
Guruch oltin qoplamasi |
Silliq |
|
GPPO (mini-smp) & g3po (SMPS) PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- GPPO-JHD-S |
DC - 40 ghz |
1.50 |
Kartrij lehim |
Guruch oltin qoplamasi |
Silliq |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Interfeys turi |
|
Fr 2- G3PO-JHD 10-1 |
DC - 100 ghz |
1.70 |
Gorizontal sirt lehim |
Guruch oltin qoplamasi |
Silliq |
|
SSMC PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- SSMC-JWHD1 |
DC - 6 ghz |
1.35 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- SSMC-JYWNDD5 |
DC - 6 ghz |
1.35 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- SSMC-JHD2 |
DC - 6 ghz |
1.35 |
Kartrij lehim |
Guruch oltin qoplamasi |
Silliq |
|

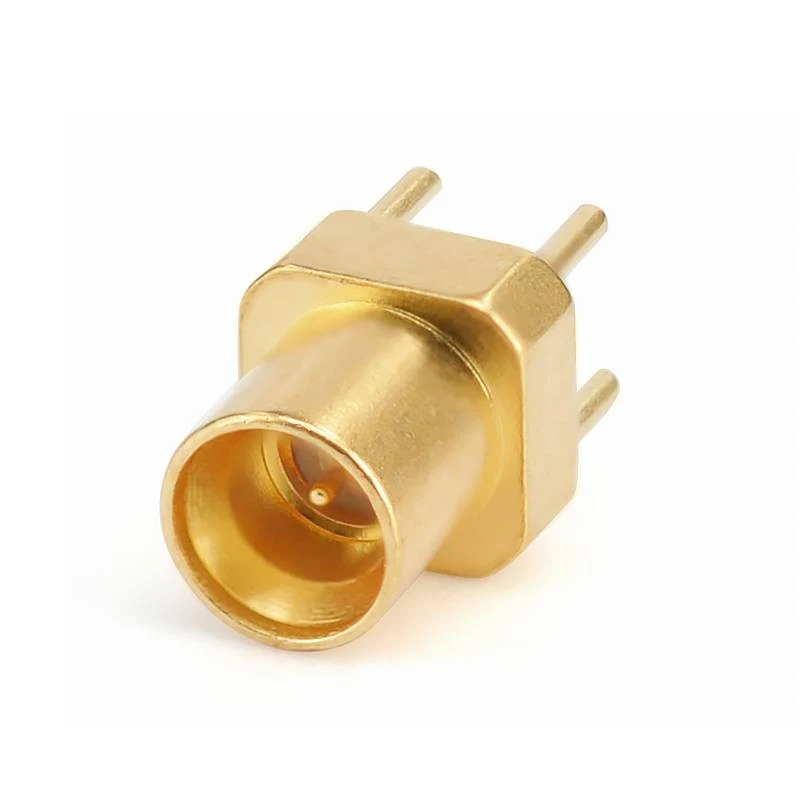

Mmcx & mcx PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- MakX-XD101E |
DC - 6 ghz |
1.30 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- Makx-kid1e |
DC - 6 ghz |
1.20 |
Quyma o'rnatish |
Guruch oltin qoplamasi |
Nod |
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- MMCX-XD1E |
DC - 6 ghz |
1.20 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|

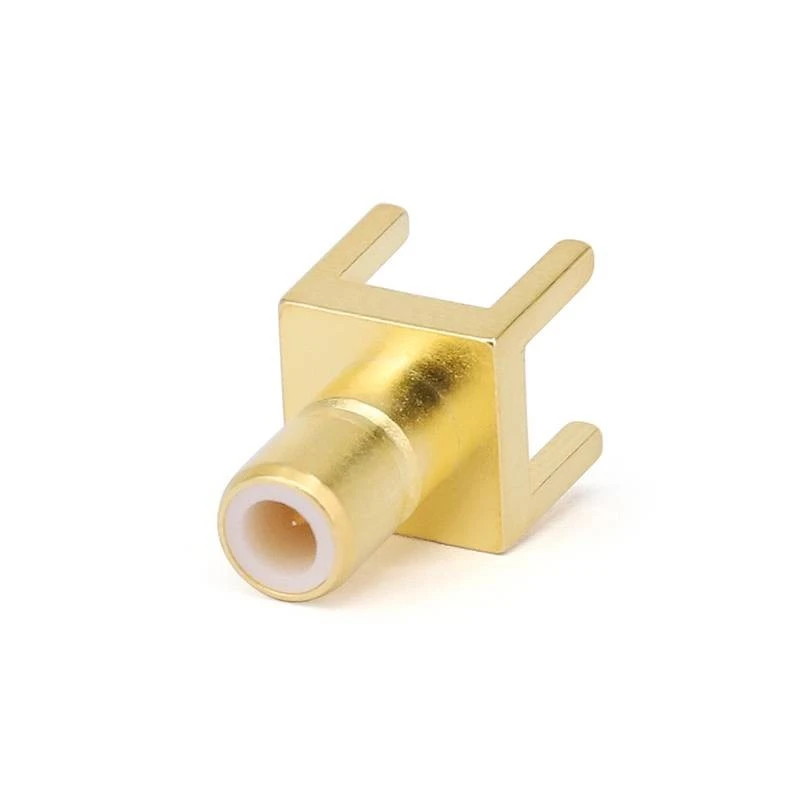

SMB PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- SMB-JHD101E |
DC - 6 ghz |
1.35 |
Kartrij lehim |
Guruch oltin qoplamasi |
Nod |
|
Bnc PCB ulagichlari |
|||||
|
|
 |
||||
|
Sku |
Chastota |
Chuchuk |
O'rnatish |
Material |
Signal rejimi |
|
Fr 2- bnc-ky -3 |
DC - 4 ghz |
1.30 |
Quyma o'rnatish |
Brass ni plitka |
Nod |
