Umumiy maqsadlar sinov kabellari
General purpose test cables are widely used cable products in fields such as electronic testing, with multiple characteristics to meet diverse usage requirements. In terms of connectors, this cable offers various types of connectors, including 1.85mm, 2.4mm, 2.92mm, SMA, G3PO, and GPPO. Barcha ulagichlar 50 ta ohm va standart qutbga ta'sir qiladi.
Ta'rif
Umumiy maqsadlar sinov kabellari

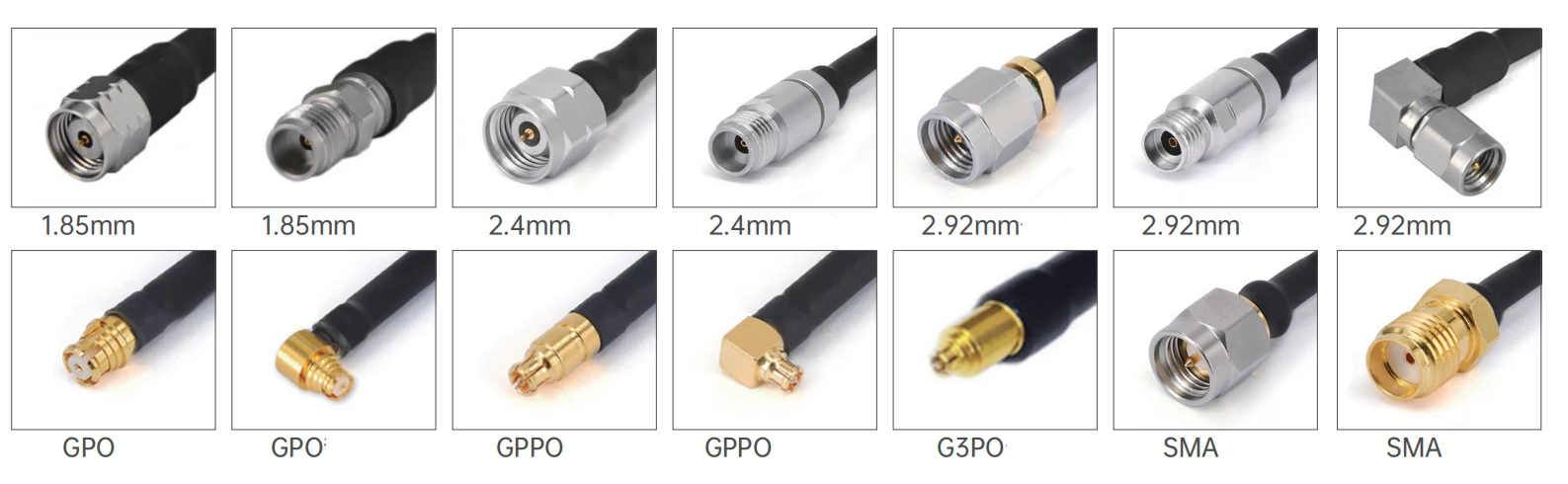

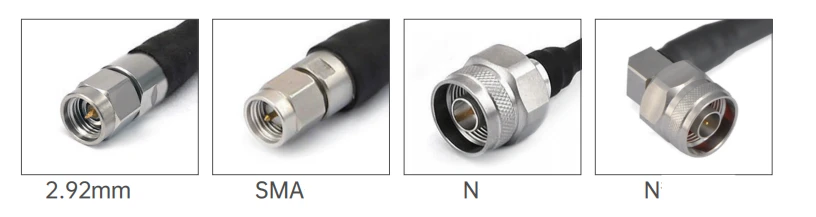

Umumiy foydalanish shartlariga binoan turli xil ulagichlarni, 2. 92 mm, 2}} . 92 mm, Gppo. Barcha ulagichlar 50 ta ohm va standart qutbga ta'sir qiladi. Bundan tashqari, ulagichlar turli xil qurilma interfeyslariga moslashishi mumkin bo'lgan to'g'ri va to'g'ri burchakli turlarga ega ulagichlar mavjud.
Mahsulotni kiritish
Moddiy kontaktlar, tashqi aloqada va asosiy tanadan yuqori elektr o'tkazuvchanligi va korroziyaga qarshi kurashish bo'yicha ptitikatsiya qilingan, kabelning markaziy o'tkazmasi va ptfe moddalari bilan qoplangan. Klan po'lat, izolyatsiya qatlami kuchli ptfe, ekranli qatlam kumush va mis simlardan iborat bo'lib, ular nafaqat samarali signal va ekologik qarshilik .
Mahsulotni qo'llash
Aloqa bazasini tadqiq qilish, ishlab chiqish, ishlab chiqarish va sinov paytida, uyali aloqa vositalari, sun'iy yo'ldosh va uzatish darajasi, masalan, 5G baza stantsiyalari va boshqalarni qurish uchun turli xil test asboblarini, masalan, 5G baza stantsiyalarini qurish uchun. Asosiy stantsiyalar barqaror va samarali aloqa xizmatlarini ko'rsatilishini ta'minlash uchun signal generaterlar, spektrli analizatorlar va boshqa uskunalarni ulash uchun signal generatorlarini, spektrli analizatorlar va boshqa uskunalarni ulash uchun ishlatiladi .
Muhim notalar
1. Maxsus uzunlikdagi kabellar uchun yig'imlar uchun iltimos, cheklash sahifasida sizning uzunligi haqidagi ma'lumotingizni qoldirishni unutmang;
2. Kabel anjumanlari fazali juftlik yoki guruhlar bilan ta'minlanishi mumkin; Agar sizga faza mos keladigan kabellar kerak bo'lsa, bizga elektron pochta xabarini yuboring: sales@flexirf.com}
Mahsulotni spetsifikatsiya qilish ma'lumotlari
|
Konfiguratsiya |
|
|
Ulagich 1 turi |
1.85mm / 2.92mm / sma / G3PO / GPPO / N |
|
Ulagich 1 ta ta'sir |
50 ohm |
|
Ulagich 1 ta qutblik |
Standart |
|
Ulagich 2 turi |
1.85mm / 2.92mm / sma / G3PO / GPPO / N |
|
Ulagich 2 ta ta'sir |
50 ohm |
|
Ulagich 2 ta qutblik |
Standart |
|
Ulagichni o'rnatish usuli |
Hech biri |
|
Ulagichning tanasi uslubi |
To'g'ri va to'g'ri burchak |
|
Materiallar haqida ma'lumot |
|
|
Markaz aloqasi |
Guruch oltin qoplangan, berilum mis oltinlari |
|
Tashqi aloqa |
Guruch oltin qoplangan, berilum misi, zanglamaydigan po'latdan yasalgan |
|
Tana |
Guruch oltin qoplangan, berilum mis oltin, zanglamaydigan po'latdan yasalgan |
|
Dielektrik |
Pei / ptfe |
|
Atrof-muhit ma'lumotlari |
|
|
Harorat oralig'i |
-40 +165 ilmiy darajasiga |
|
2011/65 / EI (Rohs) |
Muvofiq |
|
Kabel xususiyatlari |
|
|
Markaz dirijorasi |
Kumush qoplangan misweld |
|
Dielektrik |
Qattiq ptfe |
|
Ikkita himoya |
Kumush qoplangan mis antiva va sim |
|
Ko'ylak |
Fohisha |
|
Kuchxona (PF / m) |
95.1 |
|
Targ'ibot tezligi (%) |
70 |
|
Shakllanish samaradorligi |
<-100dB @ 1GHz |
|
Quvvatni qayta ishlash |
10Vt @ 18Gz dengiz sathida, VSWR1.0 |
Mahsulot turi
| GAF71 / RG405SS 405 seriyali cheklanadigan kabel yig'ish | ||||
 |
Tuzilma moddiy diametri (mm) |
|||
|
1 |
Ichki direktor |
Kumush bilan qoplangan po'lat |
0.51±0.05 |
|
|
2 |
Izolyator |
Qattiq ptfe |
1.63±0.05 |
|
|
3 |
Ichki himoya |
Kumush bilan qoplangan mis and |
1.80±0.05 |
|
|
4 |
Tashqi qalqon |
Kumush qoplangan mis simli bezi |
2.18±0.05 |
|
|
5 |
ko'ylak |
Fohisha |
2.54±0.1 |
|
| Kuchlanish, kuch (20 daraja dengiz sathida sinov sharti) | |||||||
|
Chastota (gaz) |
1 |
3 |
5 |
10 |
15 |
18 |
20 |
|
O'tish (db / m) |
0.75 |
1.29 |
1.71 |
2.56 |
3.22 |
3.57 |
3.80 |
|
O'tish (DB / FT) |
0.229 |
0.393 |
0.521 |
0.780 |
0.981 |
1.008 |
1.115 |
|
Umumiy modellar va texnik ko'rsatkichlar
|
|||||
|
Rasm |
Sku |
Ulagich 1 |
Ulagich 2 |
Freatent |
Qaytish / VSWR |
 |

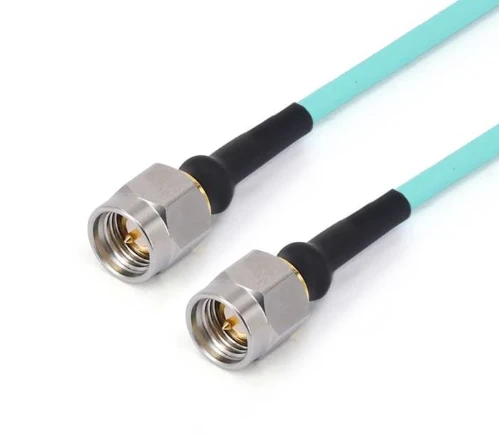

Frf 71- smmmmm-xxx |
Sma erkak |
Sma erkak |
DC -26.5 ghz |
1.30 |
 |

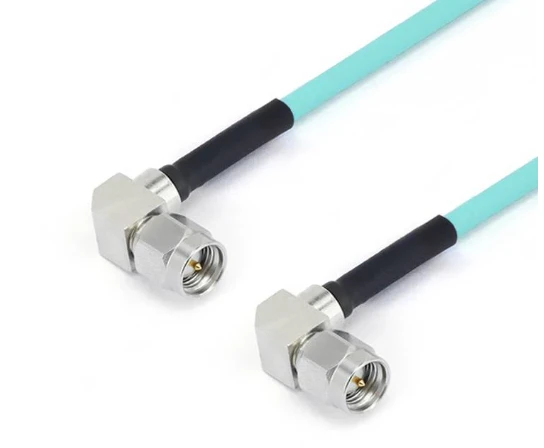

Fraf 71- smavmwm-xxx -18 g |
To'g'ri burchakli u erkak |
To'g'ri burchakli u erkak |
DC -18 ghz |
1.30 |
 |

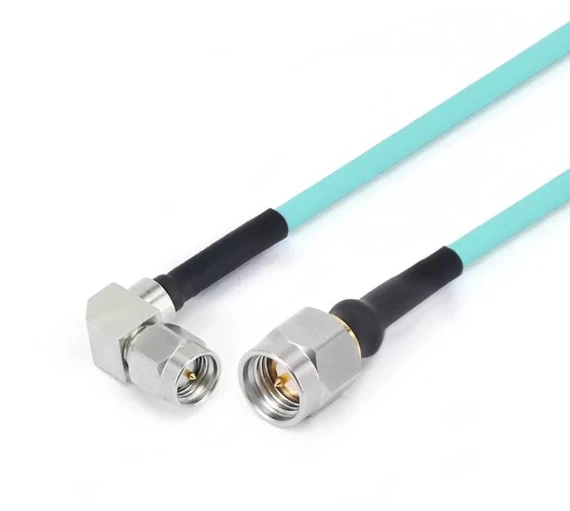

Frf 71- SMMSMWM-XXX -18 g |
Sma erkak |
To'g'ri burchakli u erkak |
DC -18 ghz |
1.30 |
 |
Frf 71- smmgpf-xxx |
Sma erkak |
GPO (SMP) ayol |
DC -26.5 ghz |
1.35 |
 |
Frf 71- smmgpwf-xxx |
Sma erkak |
GPO (SMP) ayol to'g'ri burchakli |
DC -26.5 ghz |
1.35 |
 |
Frf 71- smfgpf-xxx |
SMA ayol |
GPO (SMP) ayol |
DC -26.5 ghz |
1.35 |
 |
Frf 71- smaffgpf-xxx |
4 teshikli flanje bilan SMA ayol |
GPO (SMP) ayol |
DC -26.5 ghz |
1.35 |
 |
Frf 71- smmgppf-xxx |
Sma erkak |
Gppo (mini-smp) ayol |
DC -26.5 ghz |
14DB |
 |
Frf 71- smmgppwf-xxx |
Sma erkak |
JPPO ayol o'ng burchakli |
DC -26.5 ghz |
14DB |
 |
Frf 71- cawmgpp-xxx -18 g |
To'g'ri burchakli u erkak |
Gppo (mini-smp) ayol |
DC -18 ghz |
15DB |
 |
Fraf 71- cramgmgfwf-xxx -18 g |
To'g'ri burchakli u erkak |
JPPO ayol o'ng burchakli |
DC -18 ghz |
15DB |
 |
Frf 71- crampgff-xxx |
SMA ayol |
Gppo (mini-smp) ayol |
DC -26.5 ghz |
14DB |
 |
Frf 71- smaffgpf-xxx |
4 teshikli flanje bilan SMA ayol |
Gppo (mini-smp) ayol |
DC -26.5 ghz |
14DB |
 |
Frf 71-292 m292m-xxx |
2.92mm erkak |
2.92mm erkak |
DC -40 ghz |
1.35 |
 |
Frf 71-292 mgpf-xxx |
2.92mm erkak |
GPO (SMP) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-292 mgpwf-xxx |
2.92mm erkak |
GPO (SMP) ayol to'g'ri burchakli |
DC -40 ghz |
12DB |
 |
Frf 71-292 fgpf-xxx |
2.92mm ayol |
GPO (SMP) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-292 ffgpf-xxx |
2.92 mm ayol 4 ta teshikli urug 'bilan |
GPO (SMP) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-292 mgppf-xxx |
2.92mm erkak |
Gppo (mini-smp) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-292 fgpf-xxx |
2.92mm ayol |
Gppo (mini-smp) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-292 ffgpp-xxx |
2.92 mm ayol 4 ta teshikli urug 'bilan |
Gppo (mini-smp) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-292 mgppwf-xxx |
2.92mm erkak |
GPPO (mini-smp) ayol to'g'ri burchakli |
DC -40 ghz |
12DB |
 |
Frf 71-292 mg3pf-xxx |
2.92mm erkak |
G3PO (SMPS) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-292 fg3pf-xxx |
2.92mm ayol |
G3PO (SMPS) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-292 ffg3pf-xxx |
2.92 mm ayol 4 ta teshikli urug 'bilan |
G3PO (SMPS) ayol |
DC -40 ghz |
14DB |
 |
Frf 71-24 m24m-xxx |
2.4 mm erkak |
2.4 mm erkak |
DC -50 ghz |
14DB |
 |
Frf 71-24 fgpf-xxx |
2.4mm ayol |
GPO (SMP) ayol |
DC -40 ghz |
12DB |
 |
Frf 71-24 ffgpf -100 |
2.4mm ayol 4 ta teshikli flane bilan |
GPO (SMP) ayol |
DC -40 ghz |
12DB |
 |
Frf 71-24 mgpwf-xxx |
2.4 mm erkak |
GPO (SMP) ayol to'g'ri burchakli |
DC -40 ghz |
10DB |
 |
Frf 71-24 mgppf-xxx |
2.4 mm erkak |
Gppo (mini-smp) ayol |
DC -40 ghz |
12DB |
 |
Frf 71-24 mgppwf-xxx |
2.4 mm erkak |
GPPO (mini-smp) ayol to'g'ri burchakli |
DC -40 ghz |
10DB |
 |
Frf 71-24 fgpf-xxx |
2.4mm ayol |
Gppo (mini-smp) ayol |
DC -40 ghz |
12DB |
 |
Frf 71-24 ffgpp-xxx |
2.4mm ayol 4 ta teshikli flane bilan |
Gppo (mini-smp) ayol |
DC -40 ghz |
12DB |
 |
Frf 71-185 mg3pf-xxx |
1.85mm erkak |
G3PO (SMPS) ayol |
DC - 67 ghz |
10DB |
 |
Frf 71-185 fg3pf-xxx |
1.85mm ayol |
G3PO (SMPS) ayol |
DC - 67 ghz |
10DB |
 |
Frf 71-185 ffg3pf-xxx |
4 ta teshikdan 1,85mm |
G3PO (SMPS) ayol |
DC - 67 ghz |
10DB |
|
GAF72 / RG402SS 402 Series egiluvchan kabel yig'ish |
||||||
|
Tuzilma moddiy diametri (mm) |
||||||
 |
1 |
Ichki direktor |
Kumush bilan qoplangan po'lat |
0.92±0.05 |
||
|
2 |
Izolyator |
Qattiq ptfe |
2.97±0.05 |
|||
|
3 |
Ichki himoya |
Kumush bilan qoplangan mis and |
3.25±0.05 |
|||
|
4 |
Tashqi qalqon |
Kumush qoplangan mis simli bezi |
3.58±0.1 |
|||
|
5 |
ko'ylak |
Fohisha |
4.12±0.13 |
|||
| Kuchlanish, kuch (20 daraja dengiz sathida sinov sharti) | |||||||
|
Chastota (gaz) |
1 |
3 |
5 |
10 |
15 |
18 |
20 |
|
O'tish (db / m) |
0.41 |
0.74 |
0.98 |
1.47 |
1.87 |
2.10 |
2.24 |
|
O'tish (DB / FT) |
0.125 |
0.226 |
0.299 |
0.448 |
0.570 |
0.640 |
0.683 |
|
Umumiy modellar va texnik ko'rsatkichlar
|
|||||
|
Rasm |
Sku |
Ulagich 1 |
Ulagich 2 |
Freatent |
Qaytish / VSWR |
|
|
Frf 72- smmmmm-xxx |
Sma erkak |
Sma erkak |
DC -26.5 ghz |
1.30 |
|
|

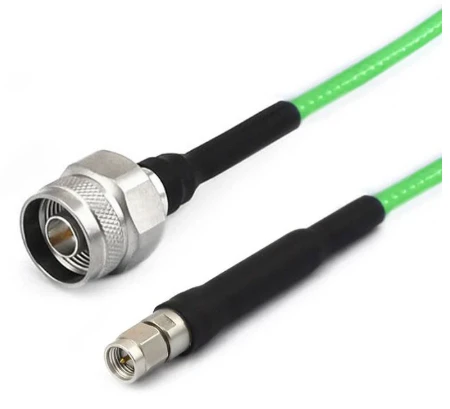

Frf 72- nsmm-xxx |
N erkak |
Sma erkak |
DC -18 ghz |
1.25 |
|
|

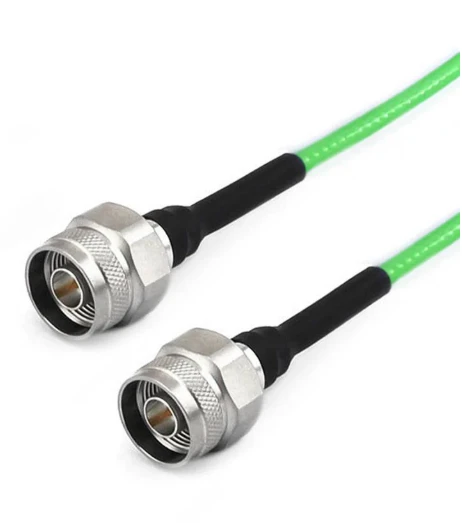

Frf 72- nmnm-xxx |
N erkak |
N erkak |
DC -18 ghz |
1.25 |
