Kam yo'qotish faza barqaror seriyali
Muloqot, elektron sinov va o'lchash kabi kesish davrida signal uzatilishning barqarorligi, tizimlarning ishlashini belgilab, tegishli talablar tobora ko'proq tobora kuchayib bormoqda .
Ta'rif
Mahsulotni kiritish
Kalitsiya, elektron test va o'lchash kabi kesish davrida signallarni uzatish va past darajadagi belgilar, ulardan tashqari stsenariylar va tegishli talablar tobora kuchayib bormoqda. aniq va samarali signalni uzatish .}
Mahsulot tuzilishi xususiyatlari
Zo'r kam - yo'qotish xususiyatlari:
Ular turli xil chastota sharoitida juda kam uchraydigan podiriy sharoitlarni namoyish etadilar . FRU1 / GT147A modelini (40HTz) olib borish, hatto metr uchun 85 db 85 db.
Superb fazasi barqarorligi:
Ular uchun . yuqori darajadagi bosqichli fazali xususiyatlarga ega, masalan, FRU / GT147A 10 -Gz chastotasida ishlaydi, uning mexanik fazasi barqarorligi 10 kilogramm / 3 darajaga etadi; Chastotasi jinsiy aloqa davriga yaqinlashganda, u 18jyabr / 5 darajaga erishish mumkin. . tizimlari
Keng chastotani qoplash:
Mahsulotlar keng chastota qoplamalari doirasida, to'g'ridan-to'g'ri joriy (DC) dan 110GHZ gacha bo'lgan turli xil modellar turli xil chastotalarning turli xil talablariga mos ravishda moslashtirilgan bo'lishi mumkin . .
Mahsulotni qo'llash
Mikroto'lqinli palataning testida ular test antotexnika va spektrni qayta ishlab chiqarishni va sifatni tekshirish va sifatni tekshirish va sifatli tekshirish va sifatli tekshiruvlarning aniq o'lchovi va ishonchliligini ta'minlaydilar.
Muhim notalar
1. Maxsus uzunlikdagi kabellar uchun yig'imlar uchun iltimos, cheklash sahifasida sizning uzunligi haqidagi ma'lumotingizni qoldirishni unutmang;
2. Kabel anjumanlari fazali juftlik yoki guruhlar bilan ta'minlanishi mumkin; Agar sizga faza mos keladigan kabellar kerak bo'lsa, bizga elektron pochta xabarini yuboring: sales@flexirf.com}
Mahsulotni spetsifikatsiya qilish ma'lumotlari
|

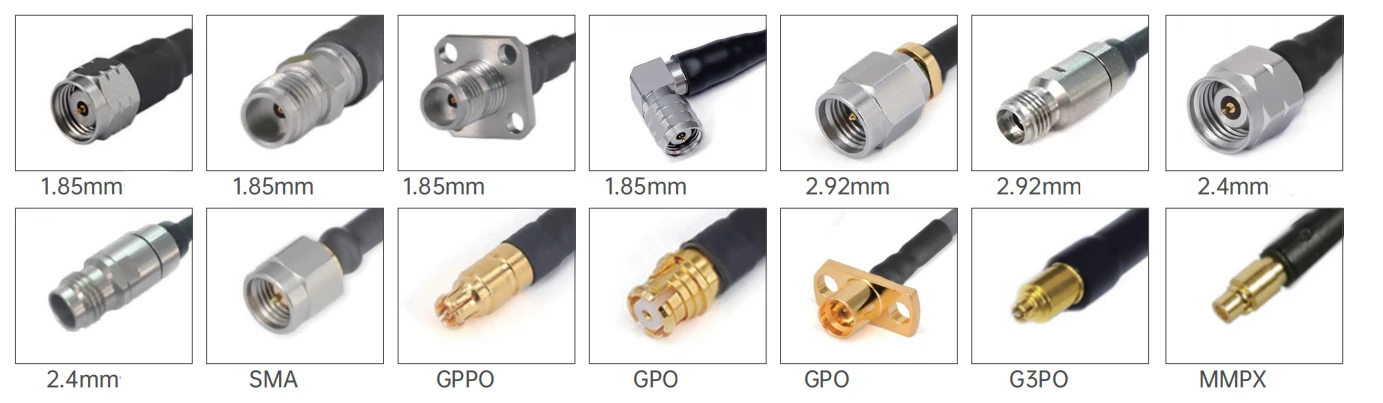

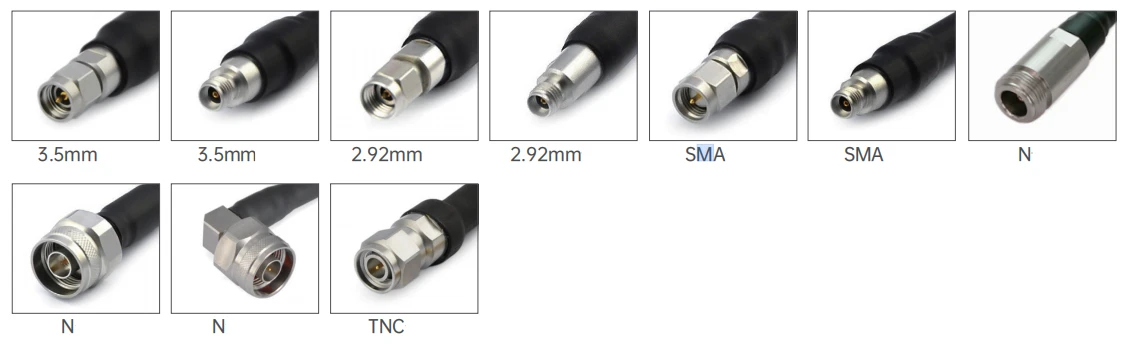

Konfiguratsiya |
|
|
Ulagich 1 turi |

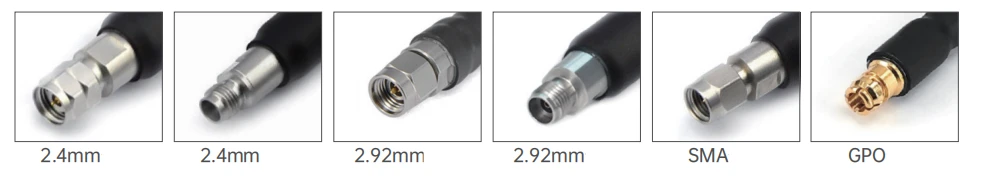

1.85mm / 2.92mm / sma / g3po / gppo / n / tnc |
|
Ulagich 1 ta ta'sir |
50 ohm |
|
Ulagich 1 ta qutblik |
Standart |
|
Ulagich 2 turi |
1.85mm / 2.92mm / sma / g3po / gppo / n / tnc |
|
Ulagich 2 ta ta'sir |
50 ohm |
|
Ulagich 2 ta qutblik |
Standart |
|
Ulagichni o'rnatish usuli |
Hech biri |
|
Ulagichning tanasi uslubi |
To'g'ri va to'g'ri burchak |
|
Materiallar haqida ma'lumot |
|
|
Markaz aloqasi |
Guruch oltin qoplangan, berilum mis oltinlari |
|
Tashqi aloqa |
Guruch oltin qoplangan, berilum misi, zanglamaydigan po'latdan yasalgan |
|
Tana |
Guruch oltin qoplangan, berilum mis oltin, zanglamaydigan po'latdan yasalgan |
|
Dielektrik |
Pei / ptfe |
|
Atrof-muhit ma'lumotlari |
|
|
Harorat oralig'i |
-40 +165 ilmiy darajasiga |
|
2011/65 / EI (Rohs) |
Muvofiq |
Mahsulot turi
| FRU1 / GT147A Kam etkazishning past barqaror bosilg'isi kabel yig'ish (40Hz) | ||||
 |
Tuzilma moddiy diametri (mm) |
|||
|
1 |
Ichki direktor |
Kumush bilan qoplangan po'lat |
0.91±0.05 |
|
|
2 |
Izolyator |
Qattiq ptfe |
2.69±0.05 |
|
|
3 |
Ichki himoya |
Kumush bilan qoplangan mis and |
2.86±0.05 |
|
|
4 |
Tashqi qalqon |
Kumush qoplangan mis simli bezi |
3.28±0.05 |
|
|
5 |
ko'ylak |
Fohisha |
3.73±0.13 |
|
| Kuchlanish, kuch (20 daraja dengiz sathida sinov sharti) | |||||
|
Chastota (gaz) |
1 |
10 |
18 |
26.5 |
40 |
|
O'tish (db / m) |
0.39 |
1.31 |
1.81 |
2.23 |
2.85 |
|
Quvvat (W) |
380 |
120 |
90 |
75 |
65 |
| Elektr va mexanik xususiyatlar | |||||||
|
Chastota (Khz) |
Urg'u (Ω) |
Uzatish tezligi |
Unumdorlik |
Himoya qilish |
Ishlash harorati oraliq |
Minimal bencing radiusi |
Mexanik fazaning barqarorligi |
|
40 |
50 |
77% |
86 pf / m |
>100DB |
-65 ilmiy darajasi ~+165 |
6.35mm |
10GHZ / 3 daraja 18 daraja |
|
Umumiy modellar va texnik ko'rsatkichlar
|
|||||||
|
Rasm |
Sku |
Ulagich 1 |
Ulagich 2 |
Freatent |
Qaytish / VSWR |
|
|

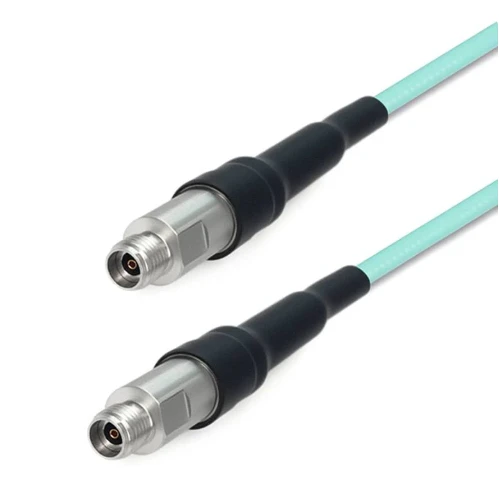

FRU 1-292 f292f-xxx |
2.92mm ayol |
2.92mm ayol |
DC -40 ghz |
1.44 |
|
|
FRU 1-292 M292M-XXX |
2.92mm erkak |
2.92mm erkak |
DC -40 ghz |
1.44 |
|
|

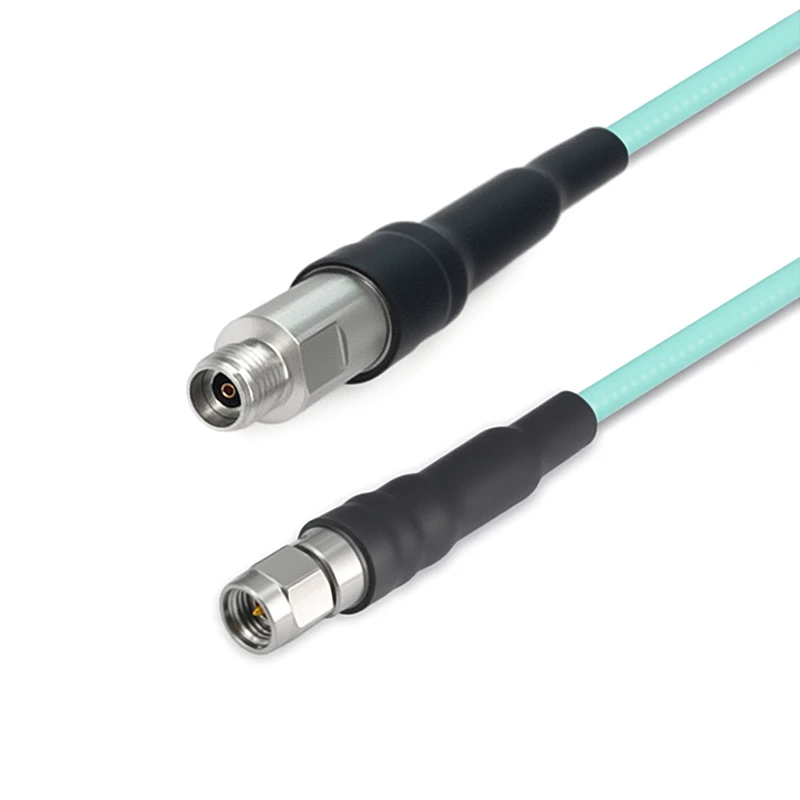

FRU 1-292 M292F-XXX |
2.92mm erkak |
2.92mm ayol |
DC -40 ghz |
1.44 |
| FRU2 / GT3506 Kam zarar etkazish uchun past fazali kabel yig'ish (65GHz) | ||||
|
|
Tuzilma moddiy diametri (mm) |
|||
|
1 |
Ichki direktor |
Kumush bilan qoplangan po'lat |
0.51±0.05 |
|
|
2 |
Izolyator |
Qattiq ptfe |
1.38±0.05 |
|
|
3 |
Ichki himoya |
Kumush bilan qoplangan mis and |
1.58±0.05 |
|
|
4 |
Tashqi qalqon |
Kumush qoplangan mis simli bezi |
1.90±0.05 |
|
|
5 |
ko'ylak |
Fohisha |
2.20±0.13 |
|
| Kuchlanish, kuch (20 daraja dengiz sathida sinov sharti) | ||||||||||
|
Chastota (gaz) |
1 |
3 |
6 |
10 |
12 |
16 |
18 |
26.5 |
40 |
67 |
|
O'tish (db / m) |
63.7 |
111.9 |
160.4 |
209.87 |
231.1 |
269.5 |
287.1 |
354 |
444 |
593.2 |
|
Quvvat (W) |
55 |
32 |
22 |
17 |
15 |
13 |
12 |
10 |
8 |
6 |
| Elektr va mexanik xususiyatlar | |||||||
|
Chastota (gaz |
E'tirof (Ō) |
Uzatish tezligi |
Unumdorlik |
Himoya qilish |
Ishlash harorati oraliq |
Minimal bencing radiusi |
Dielektrik kuchlanish |
|
67GGE |
50Ω |
82% |
94pf / m |
>90db |
-55 ilmiy darajasi ~+125 |
11mm |
800V @ dc |
|
Umumiy modellar va texnik ko'rsatkichlar
|
|||||||
|
Rasm |
Sku |
Ulagich 1 |
Ulagich 2 |
Freatent |
Qaytish / VSWR |
|
|

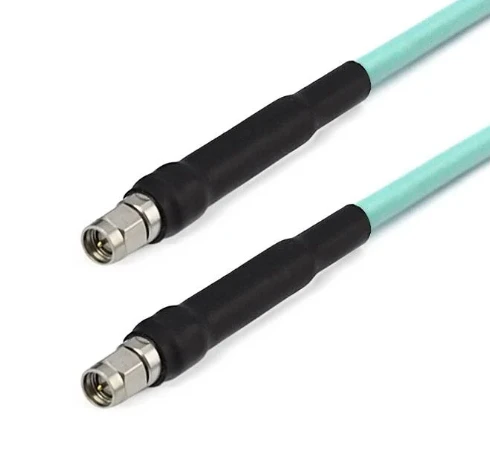

FRU 2- Smmmmm-xxx |
Sma erkak |
Sma erkak |
DC -26.5 ghz |
1.30 |
|
|
FRU 2- smmgpf-xxx |
Sma erkak |
GPO (SMP) ayol |
DC -26.5 ghz |
1.35 |
|
|
FRU 2- smmgpwf-xxx |
Sma erkak |
GPO (SMP) ayol to'g'ri burchakli |
DC -26.5 ghz |
12DB |
|
|
FRU 2- smmgpf-xxx |
Sma erkak |
Gppo (mini-smp) ayol |
DC -26.5 ghz |
13DB |
|
|
FRU 2- smmgppwf-xxx |
Sma erkak |
GPPO (mini-smp) ayol to'g'ri burchakli |
DC -26.5 ghz |
12DB |
|
|
FRU 2- SMFFGPF-XXX |
4 teshikli flanje bilan SMA ayol |
GPO (SMP) ayol |
DC -18 ghz |
1.30 |
|
|
FRU 2- SMFFGPPF-XXX |
4 teshikli flanje bilan SMA ayol |
Gppo (mini-smp) ayol |
DC -18 ghz |
16DB |
|
|
FRU 2-292 M292M-XXX |
2.92mm erkak |
2.92mm erkak |
DC -40 ghz |
1.35 |
|
|
FRU 2-292 mgpf-xxx |
2.92mm erkak |
GPO (SMP) ayol |
DC -40 ghz |
14DB |
|
|

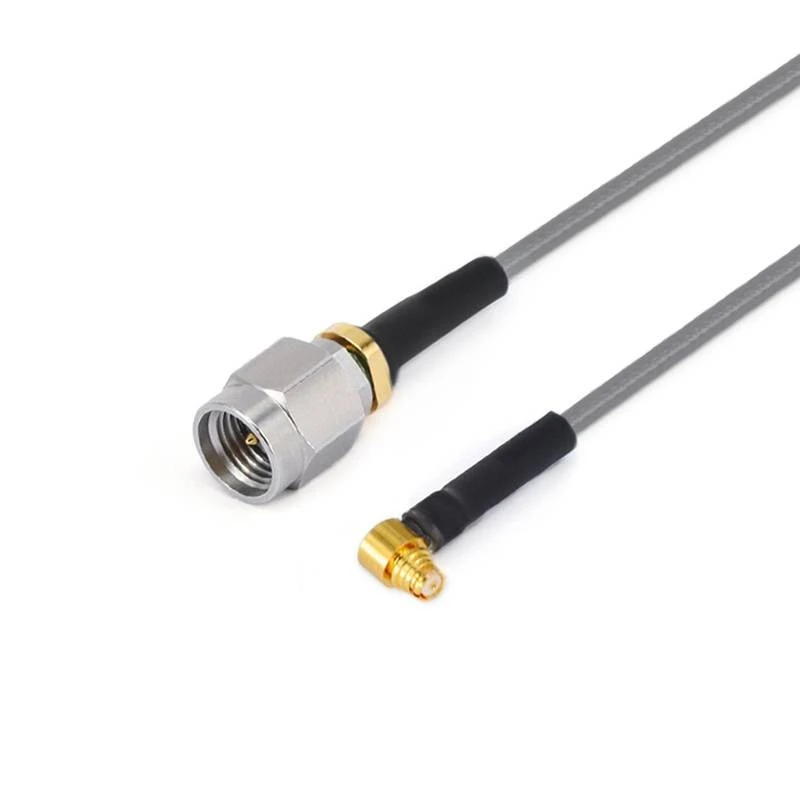

FRU 2-292 mgpwf-xxx |
2.92mm erkak |
GPO (SMP) ayol to'g'ri burchakli |
DC -40 ghz |
12DB |
|
|
FRU 2-292 mmmpxm-xxx |
2.92mm erkak |
Mmpx erkak |
DC -40 ghz |
14DB |
|
|
FRU 2-292 mmmpxf-xxx |
2.92mm erkak |
Mmpx ayol |
DC -40 ghz |
14DB |
|
|
FRU 2-292 mg3pf-xxx |
2.92mm erkak |
G3PO (SMPS) ayol |
DC -40 ghz |
14DB |
|
|
FRU 2-292 mgppwf-xxx |
2.92mm erkak |
GPPO (mini-smp) ayol to'g'ri burchakli |
DC -40 ghz |
12DB |
|
|
FRU 2-292 m24m-xxx |
2.92mm erkak |
2.4 mm erkak |
DC -40 ghz |
1.35 |
|
|
FRU 2-292 mgppf-xxx |
2.92mm erkak |
Gppo (mini-smp) ayol |
DC -40 ghz |
14DB |
|
|
FRU 2-292 fg3pf-xxx |
2.92mm ayol |
G3PO (SMPS) ayol |
DC -40 ghz |
14DB |
|
|
FRU 2-292 ffg3pf-xxx |
2.92 mm ayol 4 ta teshikli urug 'bilan |
G3PO (SMPS) ayol |
DC -40 ghz |
14DB |
|
|

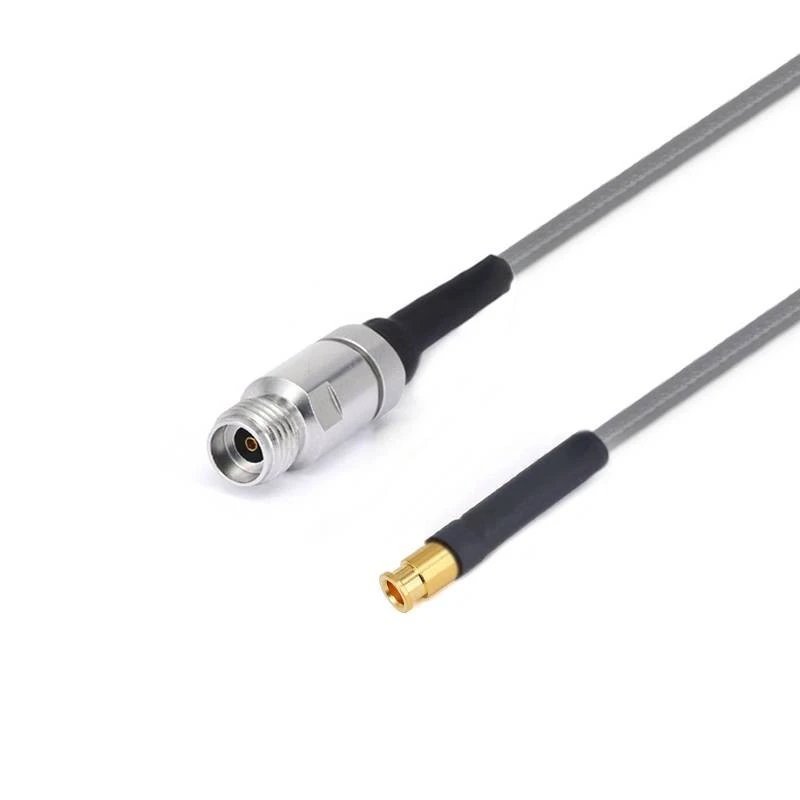

FMMPXM-XXX fru 2-292 |
2.92mm ayol |
Mmpx erkak |
DC -40 ghz |
14DB |
|
|
FFMMPXM-XXX |
2.92 mm ayol 4 ta teshikli urug 'bilan |
Mmpx erkak |
DC -40 ghz |
14DB |
|
|
FRU 2-292 ffgpf-xxx |
2.92 mm ayol 4 ta teshikli urug 'bilan |
GPO (SMP) ayol |
DC -40 ghz |
14DB |
|
|
FRU 2-24 m24m-xxx |
2.4 mm erkak |
2.4 mm erkak |
DC -50 ghz |
1.44 |
|
|
FRU 2-24 mgpf-xxx |
2.4 mm erkak |
GPO (SMP) ayol |
DC -40 ghz |
14DB |
|
|
FRU 2-24 mgpwf-xxx |
2.4 mm erkak |
GPO (SMP) ayol to'g'ri burchakli |
DC -40 ghz |
12DB |
|
|
FRU 2-24 mmmpxm-xxx |
2.4 mm erkak |
Mmpx erkak |
DC -50 ghz |
10DB |
|
|
FRU 2-24 mmmpxm-xxx |
2.4 mm erkak |
Mmpx erkak |
DC -50 ghz |
10DB |
|
|
FRU 2-24 mgppf-xxx |
2.4 mm erkak |
Gppo (mini-smp) ayol |
DC -50 ghz |
10DB |
|
|
FRU 2-24 mgppwf-xxx |
2.4 mm erkak |
GPPO (mini-smp) ayol to'g'ri burchakli |
DC -50 ghz |
10DB |
|
|
FRU 2-24 ffgpf-xxx |
2.4mm ayol 4 ta teshikli flane bilan |
GPO (SMP) ayol |
DC -50 ghz |
10DB |
|
|
FRU 2-24 ffgpp-xxx |
2.4mm ayol 4 ta teshikli flane bilan |
Gppo (mini-smp) ayol |
DC -50 ghz |
10DB |
|
|

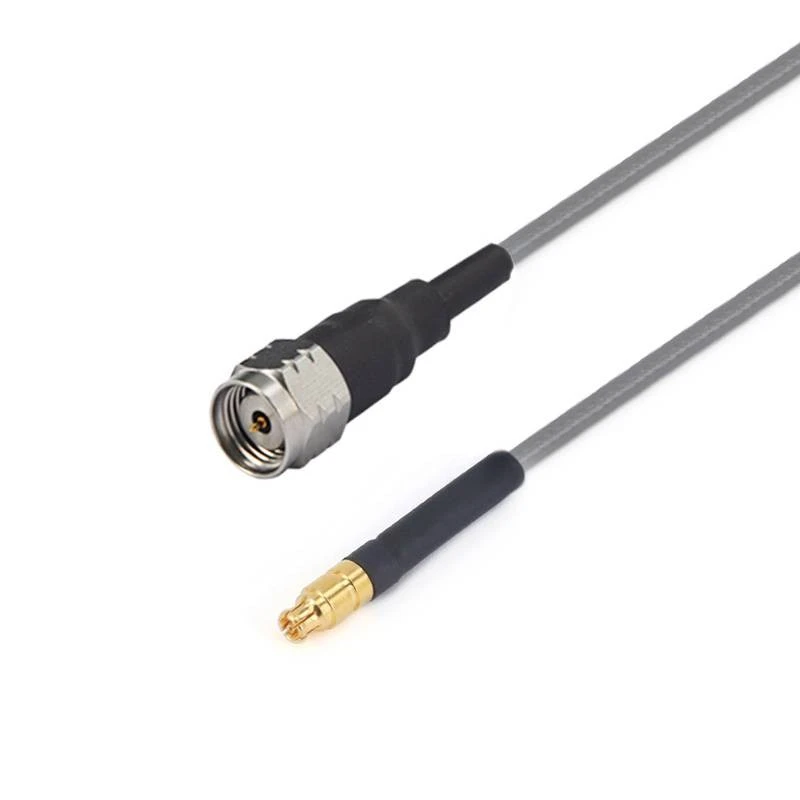

FRU 2-185 mgppf-xxx |
1.85mm erkak |
Gppo (mini-smp) ayol |
DC -67 ghz |
10DB |
|
|
FRU 2-185 wmgpf-xxx |
1,85 mm erkak o'ng burchakli |
Gppo (mini-smp) ayol |
DC -67 ghz |
10DB |
|
|
FRU 2-185 mg3pf-xxx |
1.85mm erkak |
G3PO (SMPS) ayol |
DC -67 ghz |
10DB |
|
|
FRU 2-185 mmmpxm-xxx |
1.85mm erkak |
Mmpx erkak |
DC -67 ghz |
10DB |
|
|
FRU 2-185 mmmpxf-xxx |
1.85mm erkak |
Mmpx ayol |
DC -67 ghz |
10DB |
|
|
FRU 2-185 fgpf-xxx |
1.85mm ayol |
Gppo (mini-smp) ayol |
DC -67 ghz |
10DB |
|
|
FRU 2-185 ffgpp-xxx |
1 ta teshikli urg'ochi bilan 1,85 mm ayol |
Gppo (mini-smp) ayol |
DC -67 ghz |
10DB |
|
|
FRU 2-185 fg3pf-xxx |
1.85mm ayol |
G3PO (SMPS) ayol |
DC -67 ghz |
10DB |
|
|
FRU 2-185 ffg3pf-xxx |
1 ta teshikli urg'ochi bilan 1,85 mm ayol |
Gppo (mini-smp) ayol |
DC -67 ghz |
10DB |
|
|
FMMPXM-XXX fru 2-185 |
1.85mm ayol |
Mmpx erkak |
DC -67 ghz |
10DB |
|
|
FMMPXF-XXX fru 2-185 |
1.85mm ayol |
Mmpx ayol |
DC -67 ghz |
10DB |
| FRU3 / GT3507 Kam etkazishning pastligi past fazali kabel yig'ish (40Hz) | ||||
|
|
Tuzilma moddiy diametri (mm) |
|||
|
1 |
Ichki direktor |
Kumush bilan qoplangan po'lat |
0.91±0.05 |
|
|
2 |
Izolyator |
Qattiq ptfe |
2.69±0.05 |
|
|
3 |
Ichki himoya |
Kumush bilan qoplangan mis and |
2.86±0.05 |
|
|
4 |
Tashqi qalqon |
Kumush qoplangan mis simli bezi |
3.28±0.05 |
|
|
5 |
ko'ylak |
Fohisha |
3.73±0.13 |
|
| Kuchlanish, kuch (20 daraja dengiz sathida sinov sharti) | |||||
|
Chastota (gaz) |
1 |
10 |
18 |
26.5 |
40 |
|
O'tish (db / m) |
0.39 |
1.31 |
1.81 |
2.23 |
2.85 |
|
Quvvat (W) |
380 |
120 |
90 |
75 |
65 |
|
Elektr va mexanik xususiyatlar |
|||||||
|
Chastota (gaz) |
E'tirof (Ō) |
Uzatish tezligi |
Unumdorlik |
Himoya qilish |
Ishlash harorati oraliq |
Minimal bencing radiusi |
Mexanik fazaning barqarorligi |
|
40 |
50 |
85% |
86 pf / m |
>90db |
-65 ilmiy darajasi ~+165 |
11mm |
10GHZ / 3 daraja 18 daraja |
|

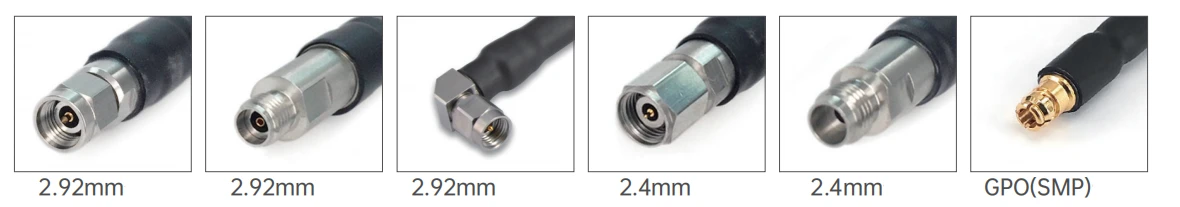

Umumiy modellar va texnik ko'rsatkichlar
|
|||||||
|
Rasm |
Sku |
Ulagich 1 |
Ulagich 2 |
Freatent |
Qaytish / VSWR |
|
|
FRU 3-292 M292M-XXX |
2.92mm erkak |
2.92mm erkak |
DC -40 ghz |
1.44 |
|
|
FRU 3-292 m24m-xxx |
2.92mm erkak |
2.4 mm erkak |
DC -40 ghz |
1.35 |
|
|
FRU 3-24 m24m-xxx |
2.4 mm erkak |
2.4 mm erkak |
DC -40 ghz |
1.35 |
| FRA3 / GT2501 Kam etkazishning pastligi past fazali kabel yig'ish (26.5hz) | ||||
|
|
Tuzilma moddiy diametri (mm) |
|||
|
1 |
Ichki direktor |
Kumush bilan qoplangan po'lat |
1.45±0.05 |
|
|
2 |
Izolyator |
Qattiq ptfe |
3.99±0.05 |
|
|
3 |
Ichki himoya |
Kumush bilan qoplangan mis and |
4.19±0.05 |
|
|
4 |
Tashqi qalqon |
Kumush qoplangan mis simli bezi |
4.42±0.05 |
|
|
5 |
ko'ylak |
Fohisha |
5.21±0.13 |
|
| Kuchlanish, kuch (20 daraja dengiz sathida sinov sharti) | |||||
|
Chastota (gaz) |
1 |
5 |
10 |
18 |
26.5 |
|
O'tish (db / m) |
0.26 |
0.52 |
0.76 |
1.05 |
1.28 |
|
Quvvat (W) |
800 |
350 |
--- |
100 |
--- |
|
Elektr va mexanik xususiyatlar |
|||||||
|
Chastota (gaz) |
E'tirof (Ō) |
Uzatish tezligi |
Unumdorlik |
Himoya qilish |
Ishlash harorati oraliq |
Minimal bencing radiusi |
Mexanik fazaning barqarorligi |
|
26.5 |
50 |
80.4% |
86 pf / m |
>100DB |
-65 ilmiy darajasi ~+165 |
6.35mm |
10GHZ / 3 daraja 18 daraja |
|
Umumiy modellar va texnik ko'rsatkichlar
|
|||||||
|
Rasm |
Sku |
Ulagich 1 |
Ulagich 2 |
Freatent |
Qaytish / VSWR |
|
|

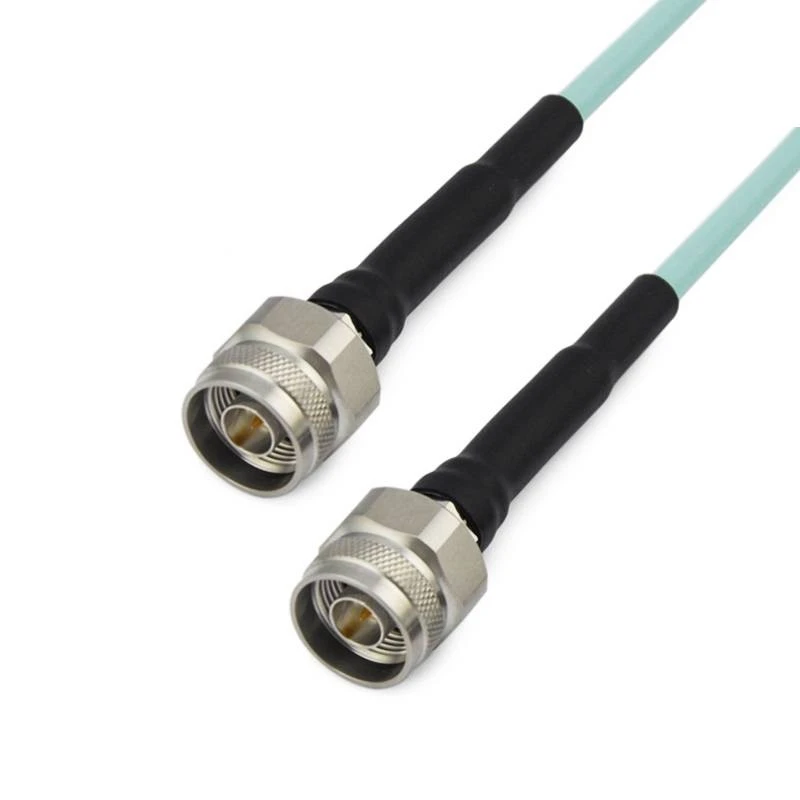

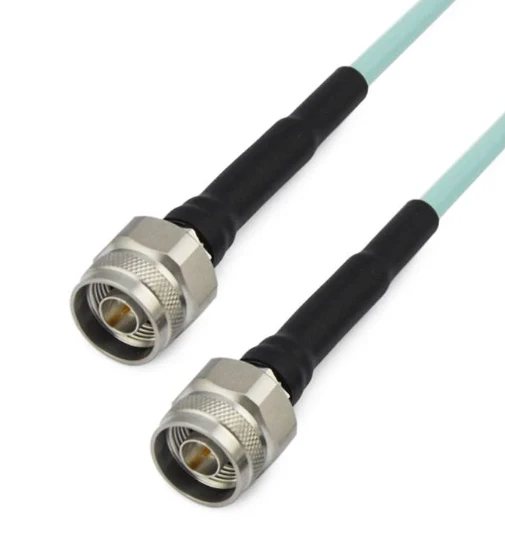

FRA 3- nmnm-xxx |
N erkak |
N erkak |
DC -18 ghz |
1.25 |
|
|

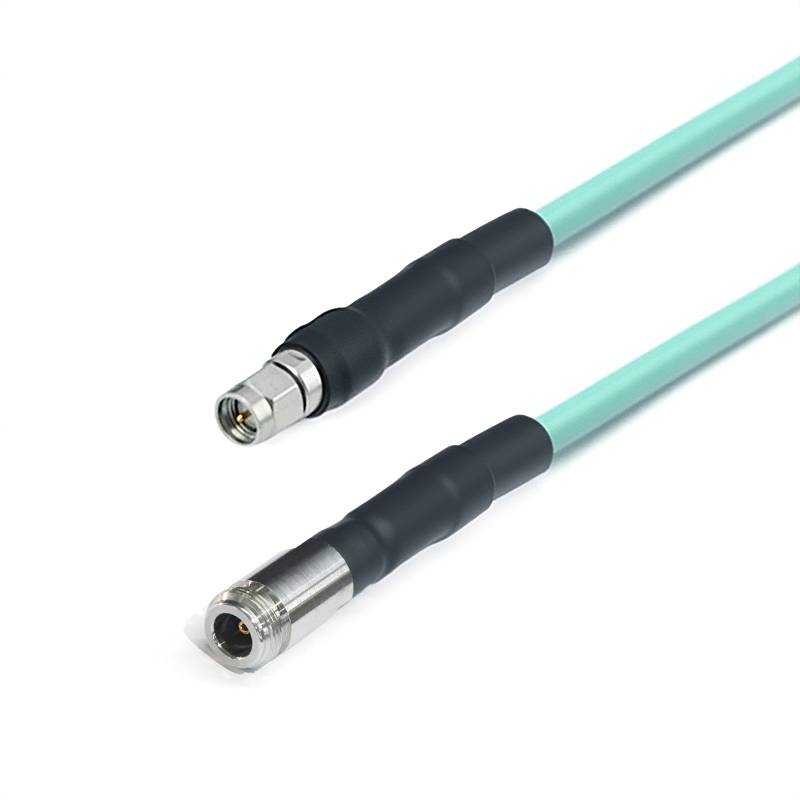

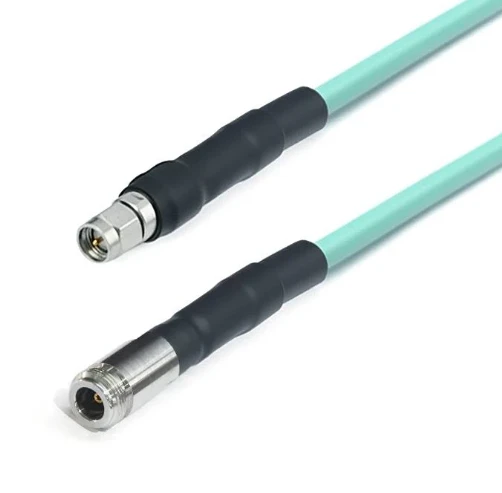

FRA 3- NFSMM-XXX |
N ayol |
Sma erkak |
DC -18 ghz |
1.25 |
|
|

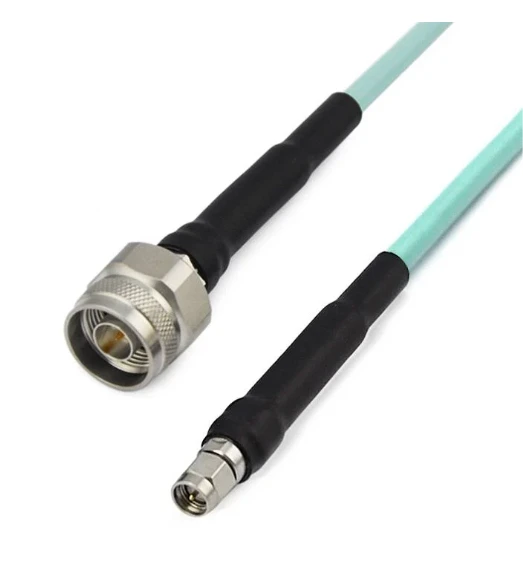

FRA 3- NMSMM-XXX |
N erkak |
Sma erkak |
DC -18 ghz |
1.25 |
|
|
FRA 3- smmsmm-xxx |
Sma erkak |
Sma erkak |
DC -18 ghz |
1.25 |
|
|

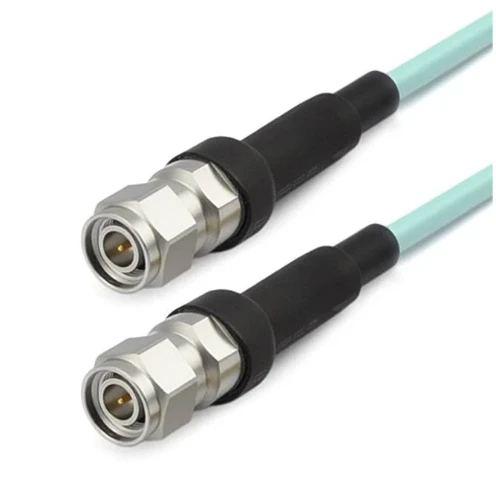

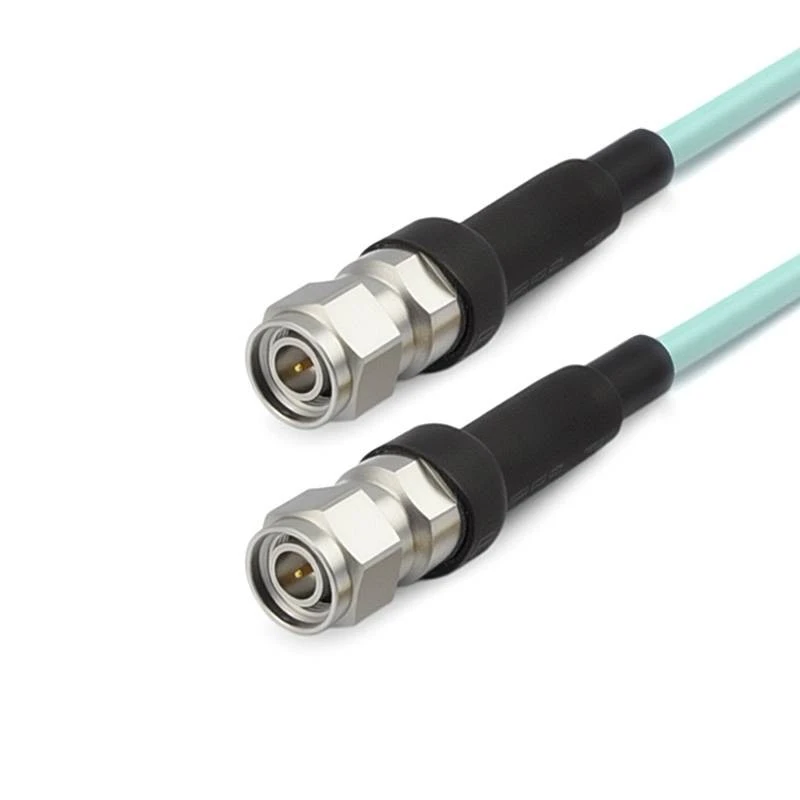

FRA 3- tncmtncm-xxx |
TNC erkak |
TNC erkak |
DC -18 ghz |
1.30 |
Issiq teglar: Kam etkazilgan bosqichli seriyalar, AQSh kam yo'qotish fazasi ishlab chiqaruvchilar, etkazib beruvchilar, zavod
So'rov yuborish
Sizga ham yoqishi mumkin
